CP802A2L

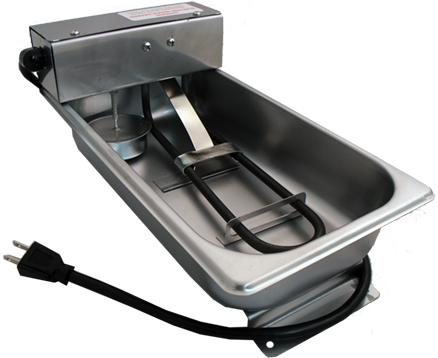

CP802A2L--A2L CONDENSATE PAN 1.75 QT 120V 800W
For condensate applications where no drain is available. SUPCO® Condensate Pans are made from top quality materials for durable, long life. Now compatible with A2L refrigerants.
Features/Benefits
- 3 foot grounded power cord with molded plug
- Corrosion resistant 20 gauge stainless steel construction
- For use in non-low flash point refrigeration units
- High limit safety and float switch operation
- Made from top quality materials and components for durability
- NSF® Compliant material
- One year warranty from date of installation
- UL® recognized (# SA32471)
- NOT FOR USE IN OUTDOOR APPLICATIONS
- WARNING: Prop 65 info
| Capacity: | 2-1/2 Quarts |
| Voltage: | 120VAC |
| Watts: | 800W |
| Amperage: | 6.6A |
| Dissipation Rate: | 6 Gallons / Day |
| Dimensions: | 13" x 7" x 2-½" |
| Reach-In Freezers/Coolers |
| Open-Air Refrigeration Units |
| Refrigerated Cases |
No downloads
Replacement Part:DM08S-1S
Part Description:
Manufacturer :Fisher-Evapoway®
Replacement Part:880111
Part Description:
Manufacturer :Birmingham®
| CPFLOAT--COMMERCIAL PAN FLOAT 3" |
| CPH802--COMM PAN HEATER 800 WATTS |
| CPS800--COMMERCIAL PAN MICRO SWITCH |
| CPT800--COMMERCIAL PAN THERMOSTAT |
| Operation : | Used for water dissipation only, DO NOT RUN DRY! |
| Do the dimensions in the Specifications include the electrical box on top?:: | No, but overall dimensional drawings are in the Downloads section, under Application Sheets |
| Can these pans be used in outdoor applications?:: | No, they are for indoor use only. |
